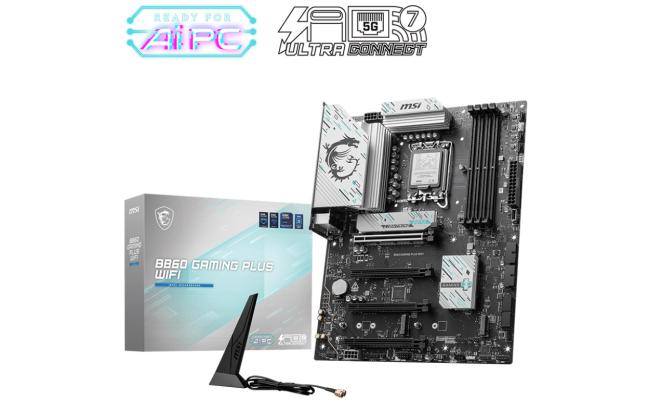

/B860-GAMING-PLUS-WIFI/B860-GAMING-PLUS-WIFI-1200x1200.jpg "MSI B860 GAMING PLUS WIFI (Wi-Fi 7) Intel Core Ultra (Series 2), LGA 1851/DDR5/PCIe 5.0/3xM.2 - ATX Gaming MotherBoard")
/B860-GAMING-PLUS-WIFI/MSI-B860-GAMING-PLUS-WIFI-1200x1200.jpg "MSI B860 GAMING PLUS WIFI (Wi-Fi 7) Intel Core Ultra (Series 2), LGA 1851/DDR5/PCIe 5.0/3xM.2 - ATX Gaming MotherBoard")
/B860-GAMING-PLUS-WIFI/B860-GAMING-PLUS-WIFI-650x400.jpg)
| Motherboard Specifications | |
|---|---|
| Supported Processors | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| Chipset | INTEL B860 |
| Socket | LGA1851 |
| Memory Type | DDR5 |
| Memory Slots | 4 |
| Maximum Memory | 256GB |
| Memory Bus Speed | 4x DDR5 UDIMM Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s |
| Ports | Display Port USB 2.0 5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ Thunderbolt™ 4 40Gbps (Type-C) USB 5Gbps (Type-A) USB 10Gbps (Type-A) Clear CMOS Button |
| Form Factor | ATX |
| M.2 Slots | Yes |
| Expansion Slots | 4x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset) |
