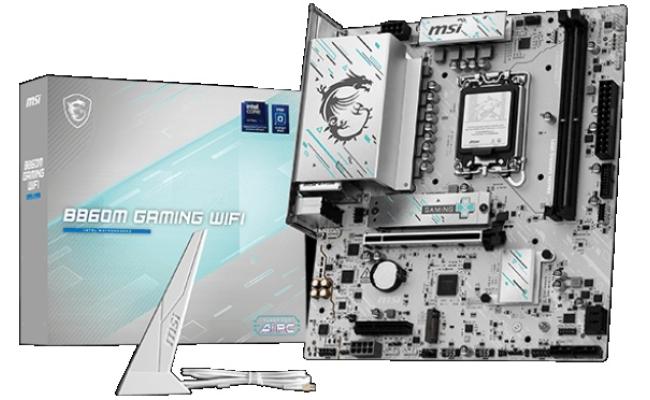

/B860M-GAMING-WIFI/B860M-GAMING-WIFI-1200x1200.jpg "MSI B860M GAMING WIFI, Intel Core Ultra (Series 2), LGA 1851/DDR5/PCIe 5.0/2xM.2 - mATX Gaming MotherBoard")
/B860M-GAMING-WIFI/MSI-B860M-GAMING-WIFI-1200x1200.jpg "MSI B860M GAMING WIFI, Intel Core Ultra (Series 2), LGA 1851/DDR5/PCIe 5.0/2xM.2 - mATX Gaming MotherBoard")
/B860M-GAMING-WIFI/B860M-GAMING-WIFI-650x400.jpg)
| Motherboard Specifications | |
|---|---|
| Supported Processors | Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851 |
| Chipset | INTEL B860 |
| Socket | LGA1851 |
| Memory Type | DDR5 |
| Memory Slots | 2 |
| Maximum Memory | 128GB |
| Memory Bus Speed | 2x DDR5 UDIMM Maximum Memory Capacity 128GB Memory Support 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9066+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC Un-buffered memory Supports CUDIMM |
| Ports | USB 2.0
5G LAN Wi-Fi / Bluetooth HDMI™ Display Port USB 20Gbps (Type-C) Clear CMOS Button USB 5Gbps (Type-A) Audio Connectors |
| Form Factor | mATX |
| M.2 Slots | Yes |
| Expansion Slots | 1x PCI-E x16 slot
1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) |
