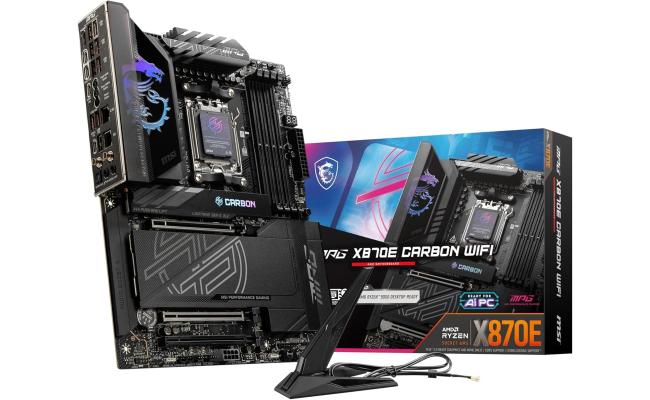

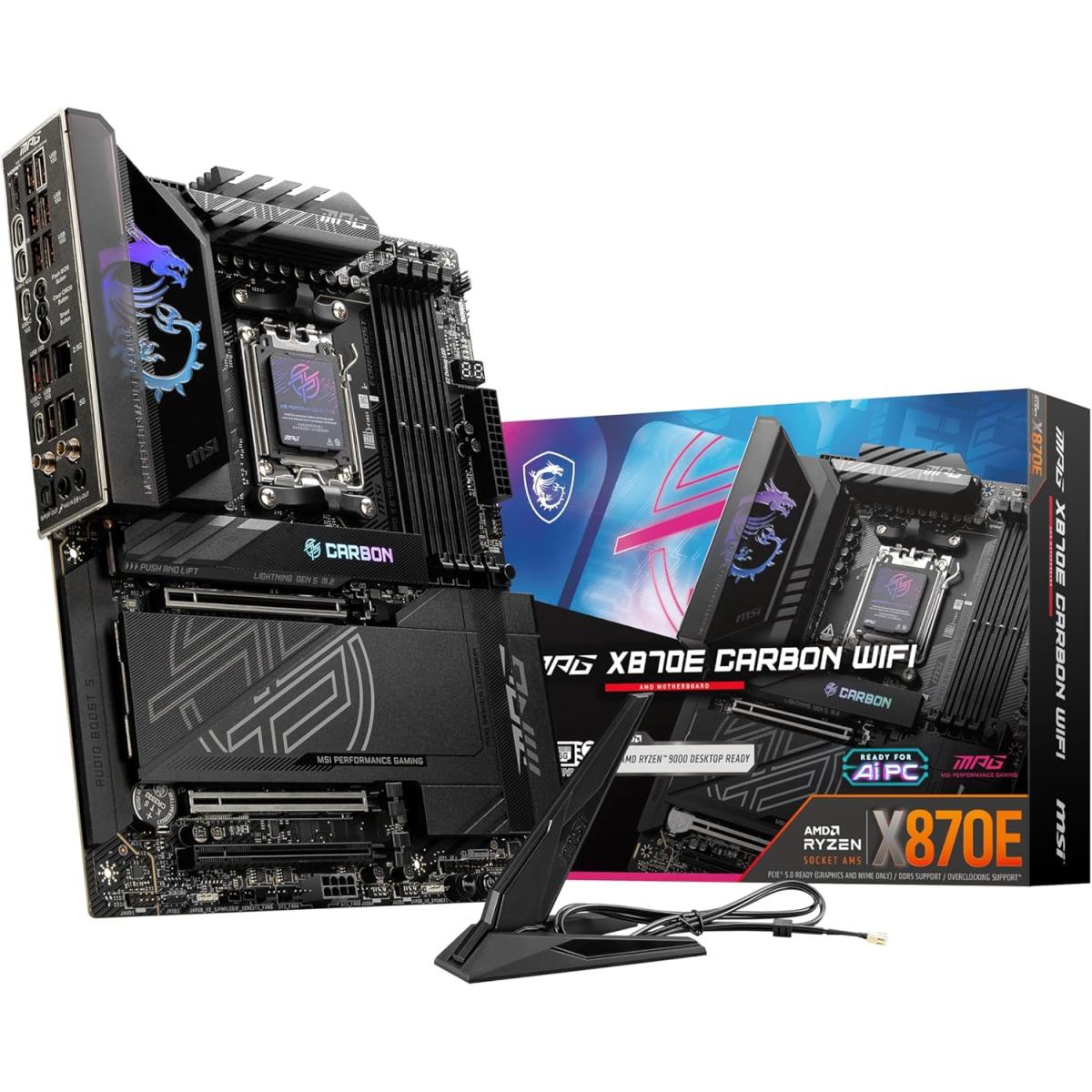

MSI MPG X870E CARBON WIFI (Wi-Fi 7) AMD RYZEN 7000 8000 9000 Series AM5/DDR5/PCIe 5.0/4xM.2 - ATX Gaming MotherBoard

JOD 399.00

Availability:: In Stock
Product Code:: MPG X870E CARBON WIFI
Brand:: MSI

Add to Wish List

Compare this Product

100 JOD+ Free delivery
Pick Up from Store

Not yet rated Write a review

Motherboard Specifications
Supported Processors	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD X870E
Socket	AMD AM5
Memory Type	DDR5
Memory Slots	4
Maximum Memory	256GB
Memory Bus Speed	4x DDR5 UDIMM Maximum Memory Capacity 256GB Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC Un-buffered memory Supports CUDIMM Clock Driver bypass mode only*
Ports	USB 10Gbps Type-A Flash BIOS Button Clear CMOS Button Smart Button 2.5G LAN 5G LAN Audio Connectors HDMI™ USB 40Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A USB 10Gbps Type-C Wi-Fi / Bluetooth Optical S/PDIF Out
Form Factor	ATX
M.2 Slots	Yes
Expansion Slots	3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor) PCI_E3 slot • Supports up to PCIe 4.0 x4
