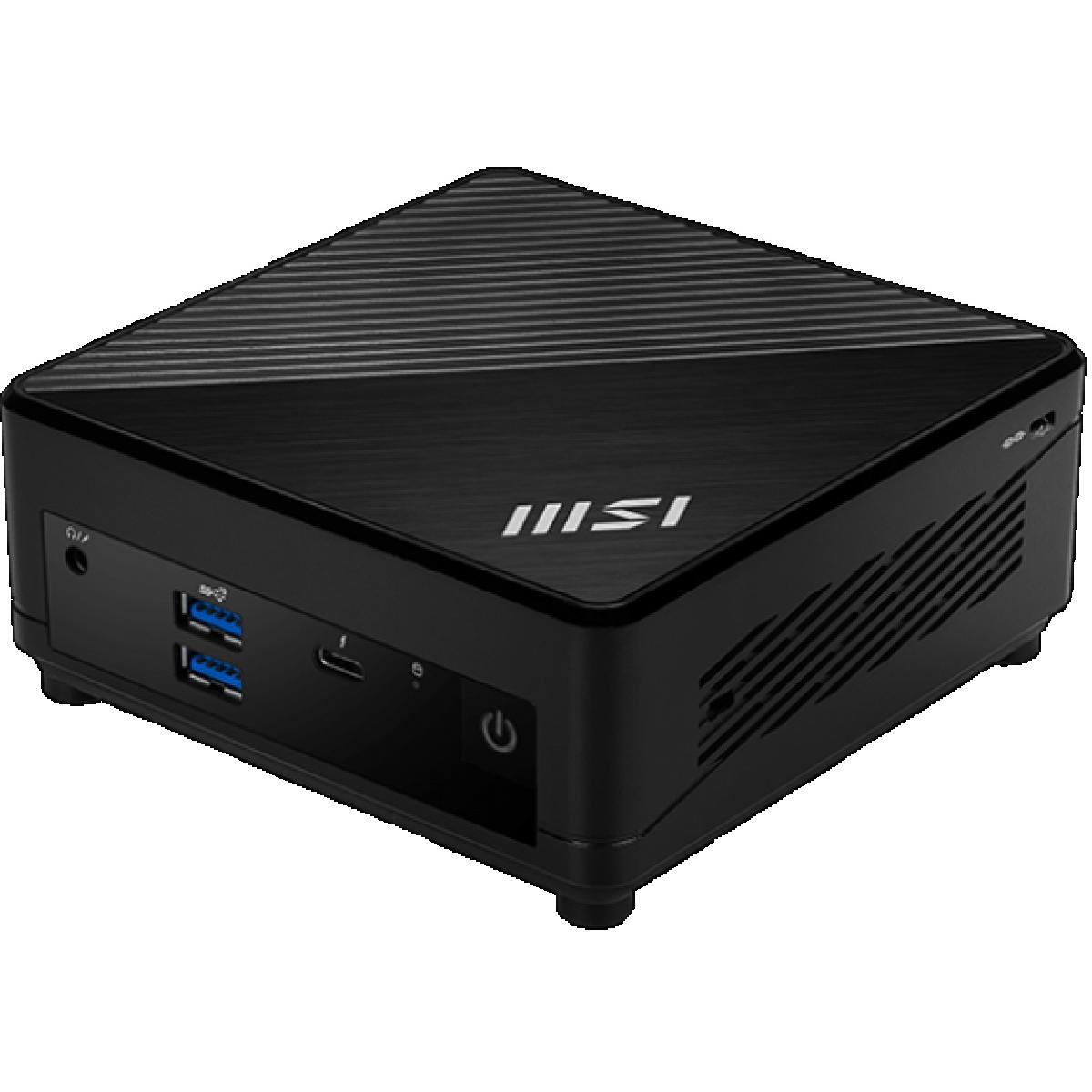

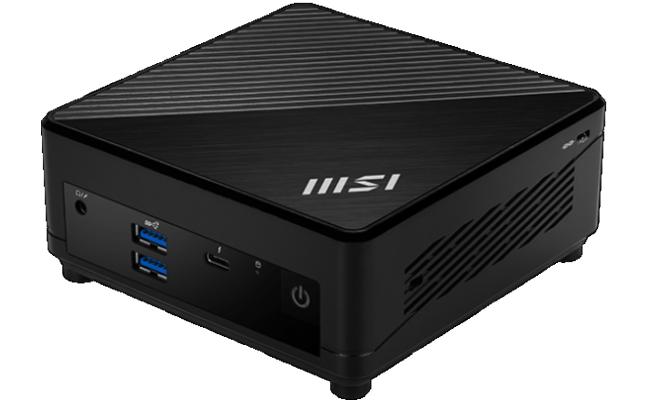

MSI Cubi 5 1M Mini PC NUC, Portable Mini PC Desktop (Series 1) Intel Core 5 120U, (No Memory Or Storage) Customizable SODIMM DDR4 Memory + M.2 PCIe NVME SSD + 2.5HDD Support, Intel Graphics, Thunderbolt™ 4

JOD 299.00

Qty

Processor
Processor Type	Core 5
Processor Generation	Series 1
Processor Family	Core 5 120U
Processor Speed	up to 5GHz
Processor Cache	12M Cache
Processor Cores	10 (2P+8E)
Processor Threads	12 Threads
Memory
Memory Size	Customized RAM: DDR5 5200 MHz Max 64GB SO-DIMM 2 Slots
Memory Type	DDR5
Number of Memory Slot	2
Storage
Storage Technology	M.2 PCIe NVMe SSD
Storage Capacity	Customized Storage: 1x M.2 2280 SSD (NVMe PCIe Gen4 x4 factory preinstalled) 1x 2.5” Drive Bay
Graphic Chip-set
Graphic Manufacturer	Intel
Graphic Chip-set Model	Intel Graphics
Graphic Memory Size	Shared Memory
Graphic Memory Type	Integrated Memory
Inputs & Outputs
Optical Drive	None

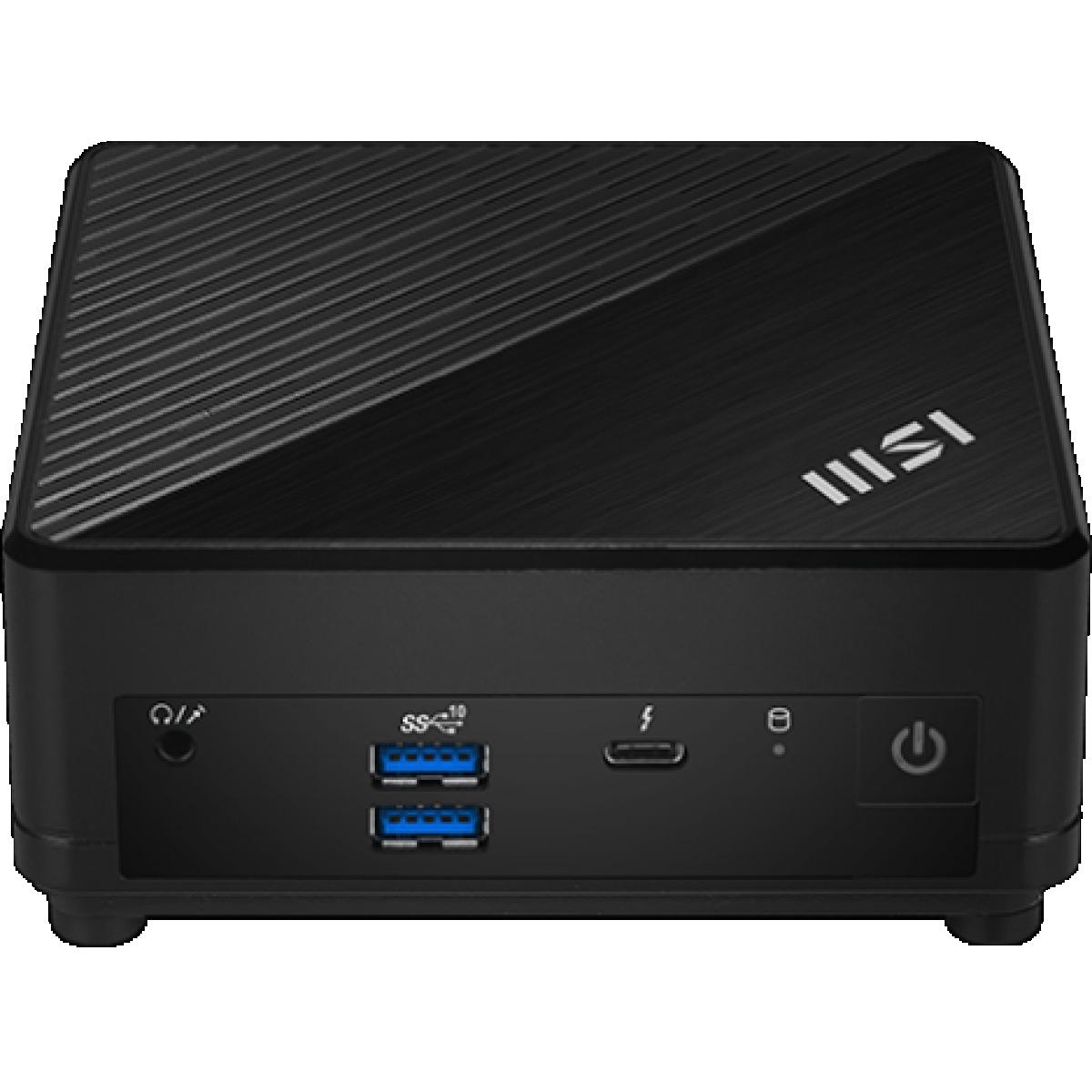

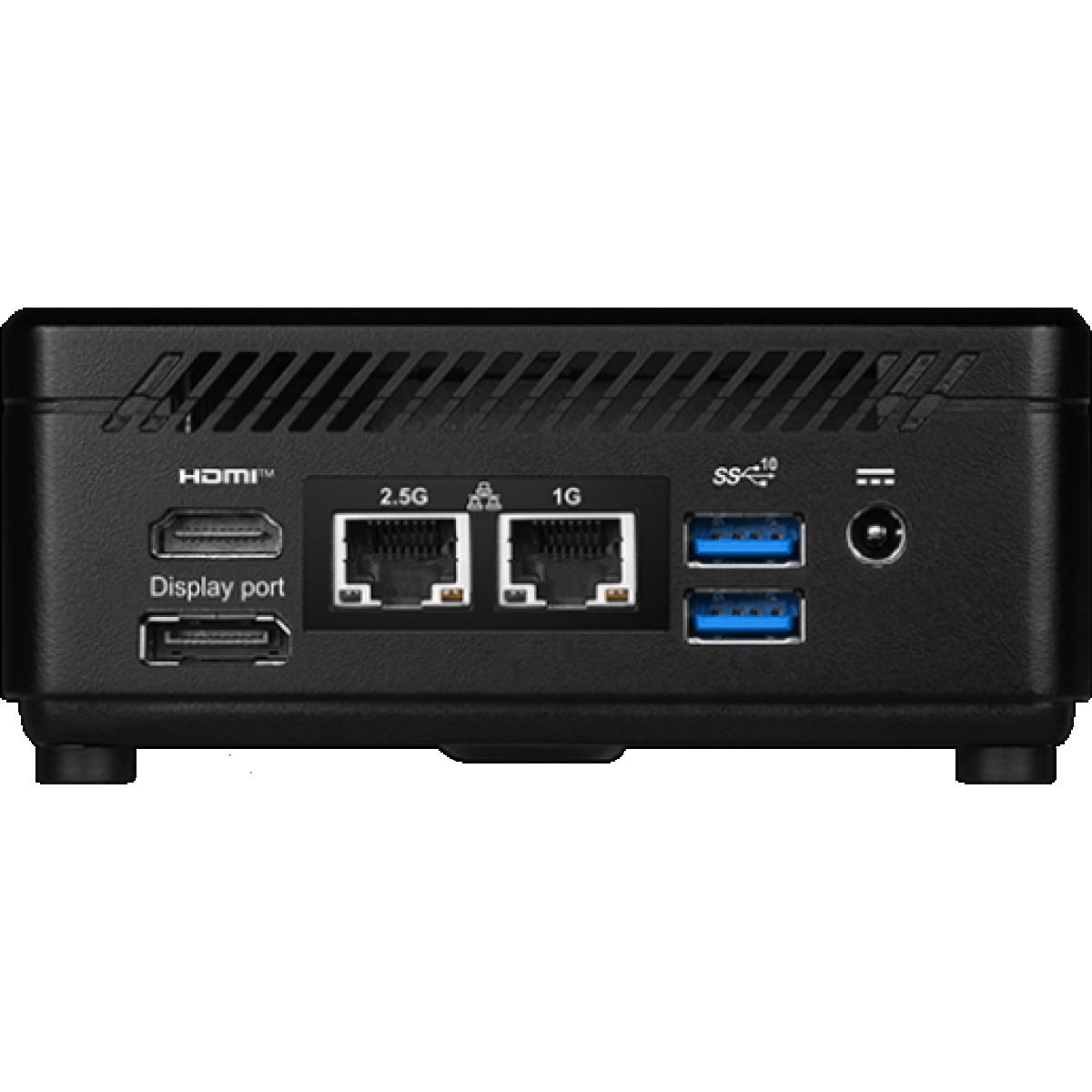

Ports	I/O Ports (Front) 1x Thunderbolt 4 (DP 1.4 alt-mode up to 4K@60Hz / PD-out 15W) 2x USB 10Gbps Type A 1x Mic-in / Headphone-out combo I/O Ports (Rear) 2x USB 10Gbps Type A 2x RJ45 (2.5G & 1G LAN) 1x HDMI out (supports 4K @60Hz as specified in HDMI 2.1) 1x DisplayPort (v1.4) I/O Ports (Side) 1x Kensington Lock 1x External Power Switch Pin Header
Audio	Realtek ALC256 2.1 Channel HD Audio
Operating System
Included Operating System	Free DOS
Connectivity
Communications	Wireless: LAN Intel® WiFi 6E AX211 / AzureWave AW-CB515NF Wi-Fi 5 Bluetooth: 5.3 (for AX211) / 5.0 (for AW-CB515NF) LAN: 1x Realtek® RTL8111H (1G) 1x Realtek® RTL8125BGCG (2.5G)
Accessories	None
Product Warranty
Warranty	1 Year
